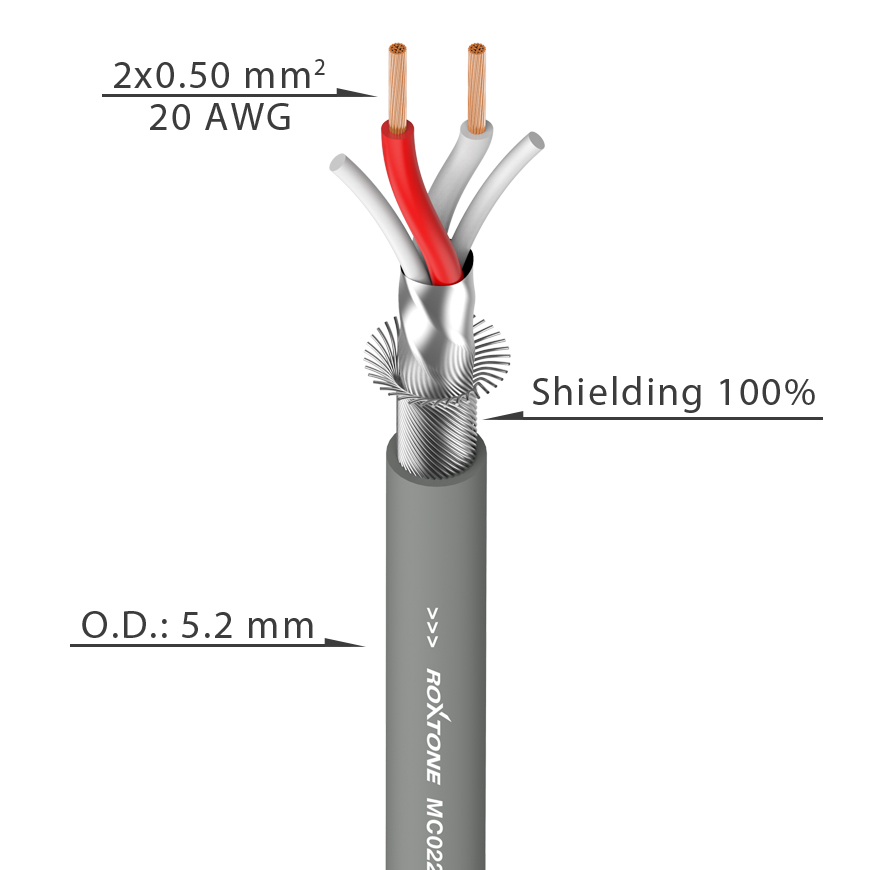

LSZH Microphone Cable – 20AWG – 2 x 0.50mm² Featured Image
  • LSZH Microphone Cable – 20AWG – 2 x 0.50mm²
  • LSZH Microphone Cable – 20AWG – 2 x 0.50mm²

MC022L

LSZH Microphone Cable – 20AWG – 2 x 0.50mm²

• Optimum transmission quality even for long lengths due to the large wire diameter of 2 x 0.50 mm²
• 100 % Copper spiral shielding and additional AL fleece
• High durability due to a thick LSZH jacket with a diameter of 5.2mm
• Easy to wind and good tensile strength
• Low smoking and zero halogen suitable for permanent installation in places with specific security condition


Product Detail

Product Tags

Applications

• Broadcast and building installation
• Professional studio technology
• Tough stage application for long lengths use

Cable Colour

• Grey

Technical Data

Order Code MC022L
Jacket, diameter LSZH 5.2 mm
AWG 20
No. of inner conductors 2 x 0.50 mm²
Copper strand per conductor 28 x 0.15 mm
Conductor insulation LLDPE
Shielding Tin plated copper spiral shielding
with 80 x 0.10 mm + AL fleece
Shielding factor 100 %
Temperature range min. -40 °C
Temperature range max. +90 °C
Packaging 100/200 m roll

Electrical Data

Capac. cond./cond. per 1 m 100 pF
Capac. cond./shield. per 1 m 185 pF
Cond. resistance per 1 m 35 mΩ
Shield. resistance per 1 m 30.4 mΩ
