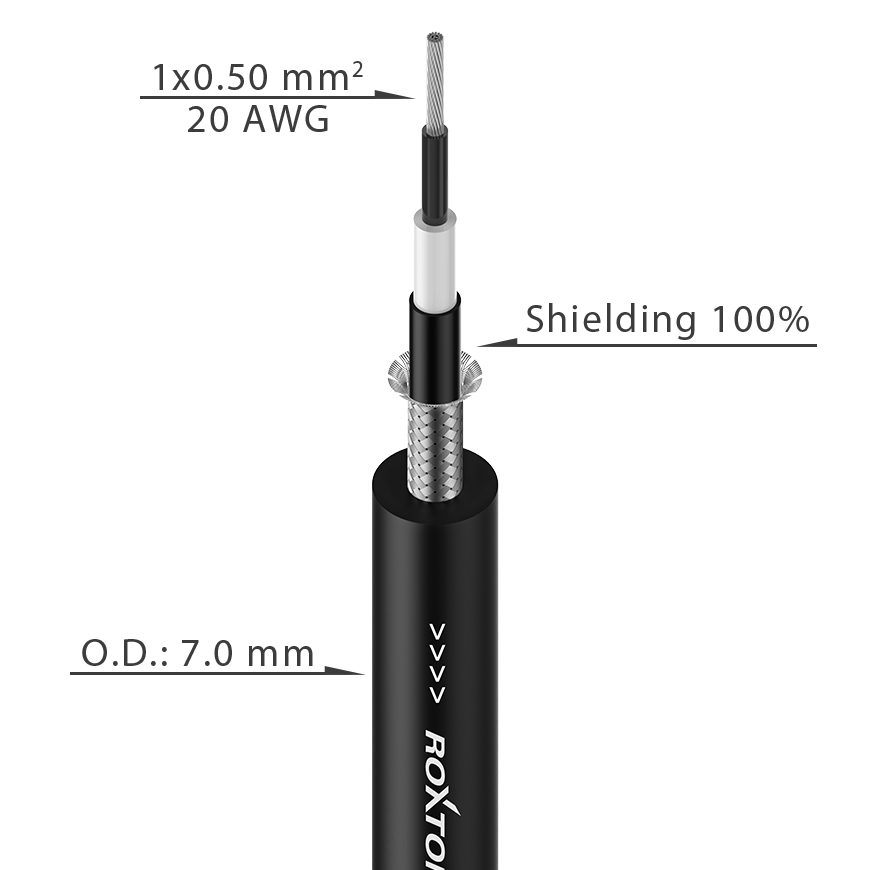

GC060

Instrument cable – 20AWG – SOLO

• Enormously powerful and clear sound image for bass, guitar, and keyboard due to the special stranding and a wire diameter of 0.50 mm²
• Double shielding due to the combination of copper braided shield and semiconductor shielding
• Very flexible and easy to wind due to the use of fine individual stranding
• Durability and robustness due to a special high quality PVC for the jacket
• Strain relief and good protection against bending due to the thick PVC-jacket


Product Detail

Product Tags

Applications

• High quality guitar cable for studio and stage
• Unbalanced cable for keyboards, samplers, mixing boards, etc.
• Connection of stereo video recorder and DAT-recorder

Cable Colour

• Black
• Blue

Technical Data

Order Code GC060
Jacket, diameter PVC 7.0 mm
AWG 20
No. of inner conductors 1 x 0.5 mm²
Copper strand per conductor 28 x 0.15 mm tin plated copper
Conductor insulation Foamed PE 3.0 mm
Shielding Tin plated copper braided
shielding with 128 x 0.10mm
+ PVC semiconductor
Shielding factor 100 %
Temperature range min. -20 °C
Temperature range max. +70 °C
Packaging 100/300 m roll

Electrical Data

Capac. cond./shield. per 1 m 98.7 pF
Cond. resistance per 1 m 34 mΩ
Shield. resistance per 1 m 25.2 mΩ
