DMX022

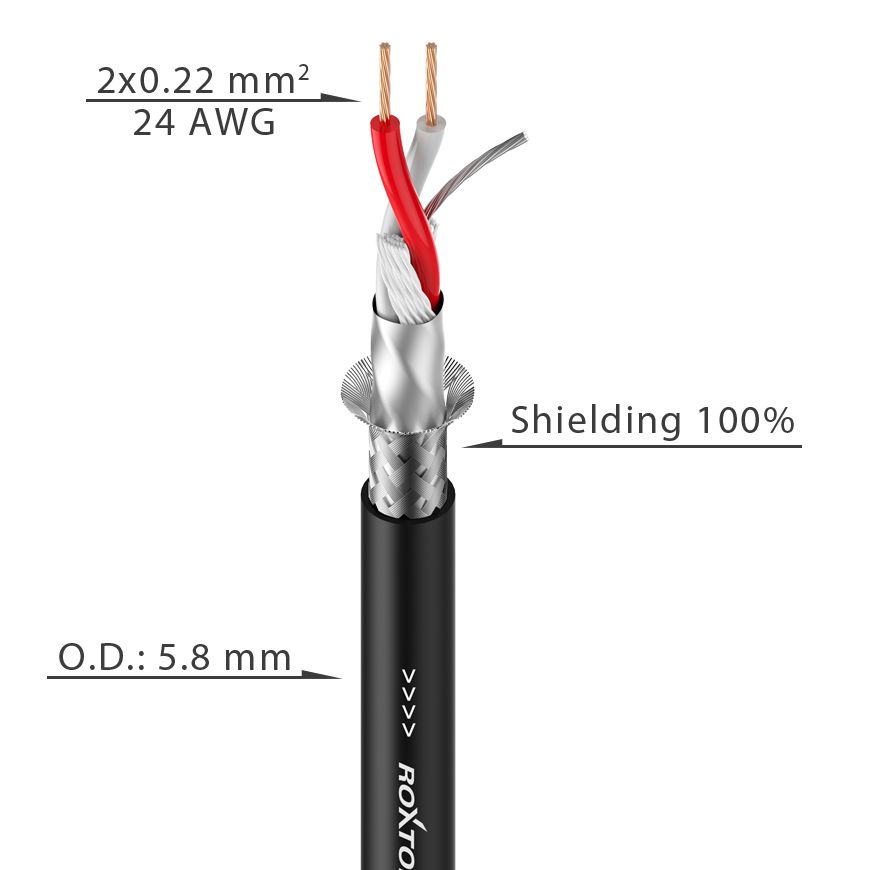

AES/EBU & DMX cable – 24AWG – 2 x 0.22 mm²
Applications
• Networking of scanners, lighting units, digital mixing boards, etc.
• For indoor and outdoor installation
• Connection of digital audio amplifiers, DAT-recorders, etc.
Cable Colour
• Black
• Blue
Technical Data
| Order Code | DMX022 |
| Jacket, diameter | PVC 5.8 mm |
| AWG | 24 |
| No. of inner conductors | 2 x 0.22 mm² |
| Copper strand per conductor | 28 x 0.10 mm |
| Conductor insulation | PE 1.70 mm |
| Shielding |
Tin copper braided shielding with 64 x 0.10 mm + AL/PT-foil + drain wire 7 x 0.20 mm Tin copper |
| Shielding factor | 100 % |
| Temperature range | min. -20 °C |
| Temperature range | max. +70 °C |
| Packaging | 100/300 m roll |
Electrical Data
| Capac. cond./cond. per 1 m | 50 pF |
| Capac. cond./shield. per 1 m | 108 pF |
| Cond. resistance per 1 km | 76.26 mΩ |
| Shield. resistance per 1 m | 29.62 mΩ |
