DMX001

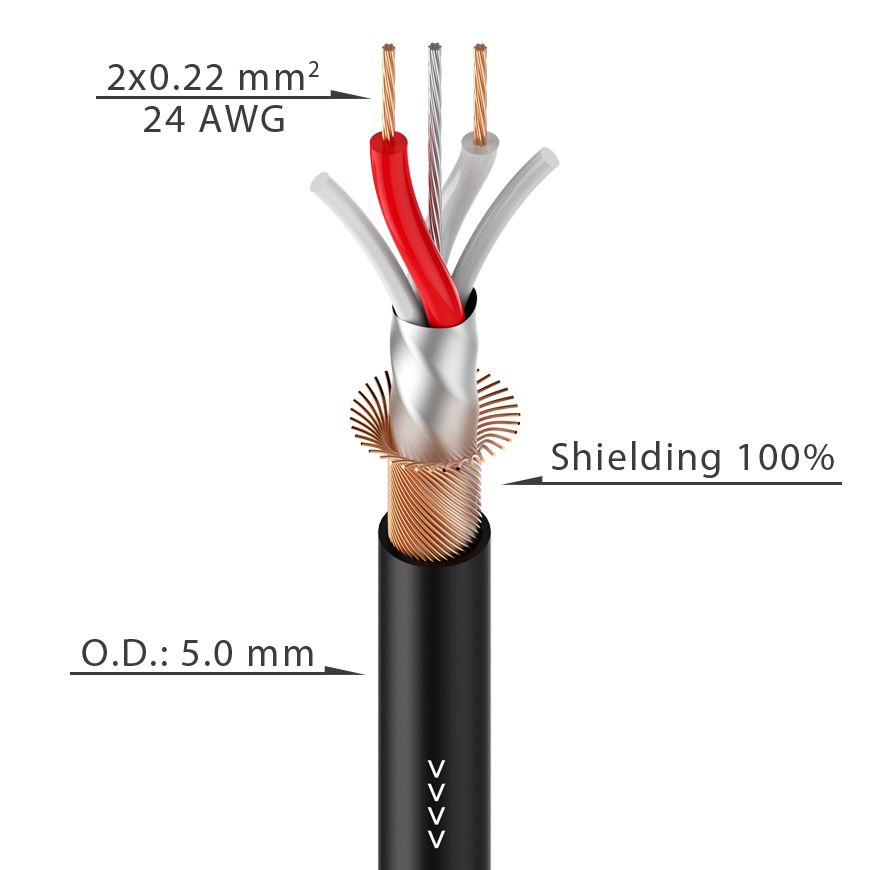

AES/EBU & DMX cable – 24AWG – 2 x 0.22 mm²
Applications
• Studio patch cabling
• Control of lighting, scanner units, and displays
• Permanent installation
Cable Colour
• Black
• Blue
Technical Data
| Order Code | DMX001 |
| Jacket, diameter | PVC 5.2 mm |
| AWG | 24 |
| No. of inner conductors | 2 x 0.22 mm² |
| Copper strand per conductor | 7 x 0.20 mm |
| Conductor insulation | PE 1.70 mm |
| Drain Wire | Tin plated copper 10 x 0.15 mm |
| Shielding | Copper spiral shielding with 80 x 0.10 mm + AL/PT-foil+PE filler |
| Shielding factor | 100 % |
| Temperature range | min. -20 °C |
| Temperature range | max. +70 °C |
| Packaging | 100/300 m roll |
Electrical Data
| Capac. cond./cond. per 1 m | 43 pF |
| Capac. cond./shield. per 1 m | 104 pF |
| Cond. resistance per 1 m | 82 mΩ |
| Shield. resistance per 1 m | 23 mΩ |
