DMX004

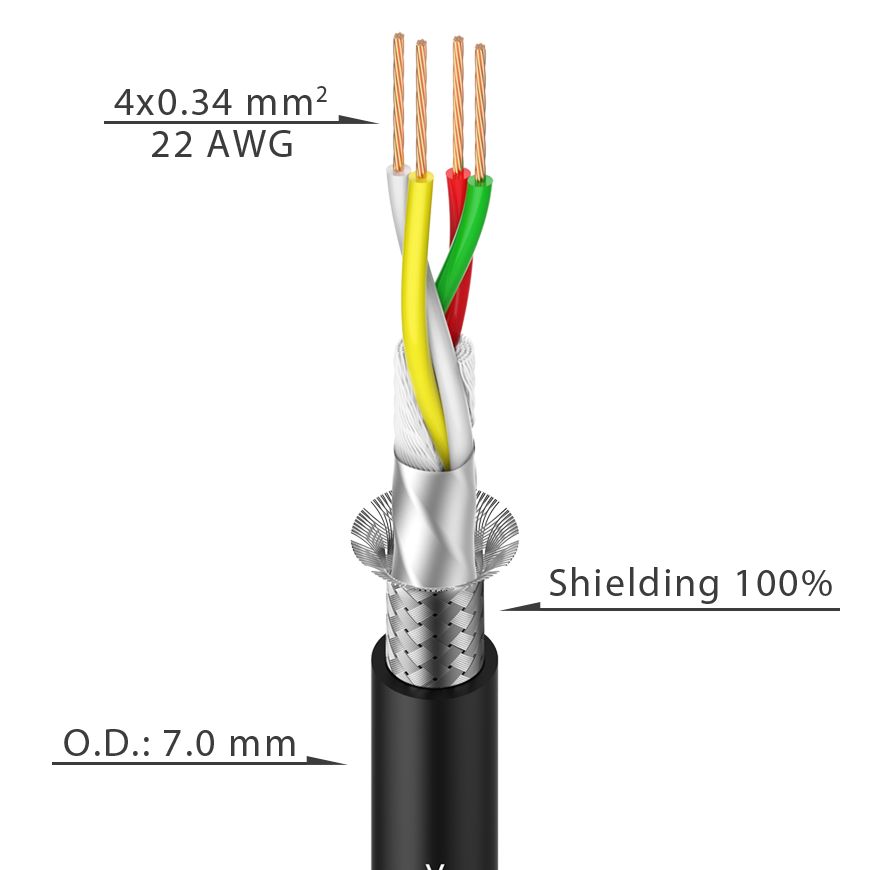

AES/EBU & DMX cable – 22AWG – 4 x 0.34mm²
Applications
• Development and fast wiring of prototypes
• Fixed installation in dry and closed buildings
• Interior wiring for electrical units
Cable Colour
• Black
Technical Data
| Order Code | DMX004 |
| Jacket, diameter | PVC 7.0 mm |
| AWG | 22 |
| No. of inner conductors | 4 x 0.34 mm² |
| Copper strand per conductor | 7 x 0.25 mm |
| Conductor insulation | PE 1.70 mm |
| Shielding |
Tin plated copper braided shielding with 128 x 0.10 mm + AL/PT-foil |
| Shielding factor | 100 % |
| Temperature range | min. -20 °C |
| Temperature range | max. +70 °C |
| Packaging | 100/300 m roll |
Electrical Data
| Capac. cond./cond. per 1 m | 49.7 pF |
| Capac. cond./shield. per 1 m | 108.7 pF |
| Cond. resistance per 1 m | 52.9 mΩ |
| Shield. resistance per 1 m | 22.59 mΩ |
