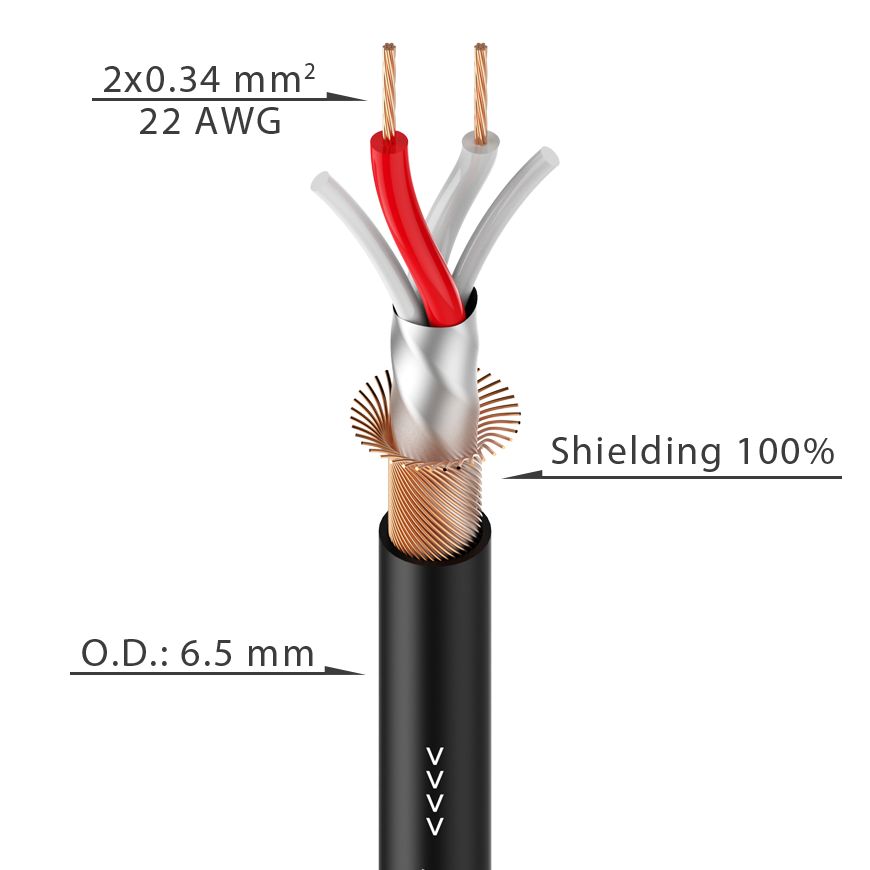

AES/EBU & DMX cable – 22AWG – 2 x 0.34 mm² Featured Image
  • AES/EBU & DMX cable – 22AWG – 2 x 0.34 mm²
  • AES/EBU & DMX cable – 22AWG – 2 x 0.34 mm²

DMX002

AES/EBU & DMX cable – 22AWG – 2 x 0.34 mm²

• AES/EBU- and DMX-conformant, highly flexible
• Very good shielding through the use of copper spiral shielding + AL/PT-foil
• The use of OFC strands and a large conductor cross-section 2 of 2 x 0.34 mm ensure high-quality signal


Product Detail

Product Tags

Applications

• Networking of scanners, lighting units, digital mixing boards, etc.
• For indoor and outdoor installation
• Connection of digital audio amplifiers, DAT-recorders, etc.

Cable Colour

• Black
• Blue

Technical Data

Order Code  DMX002
Jacket, diameter  PVC 6.5 mm
AWG 22
No. of inner conductors 2 x 0.34 mm²
Copper strand per conductor 7 x 0.25 mm
Conductor insulation PE 1.70 mm
Shielding copper spiral shielding
with 80 x 0.10 mm
+ AL/PT-foil+PE filler
Shielding factor 100 %
Temperature range  min. -20 °C
Temperature range  max. +70 °C
Packaging 100/300 m roll

Electrical Data

Capac. cond./cond. per 1 m 52 pF
Capac. cond./shield. per 1 m 105 pF
Cond. resistance per 1 m 55 mΩ
Shield. resistance per 1 m 27 mΩ
