Speaker cable – 14AWG – 6 x 2.5 mm² Featured Image
  • Speaker cable – 14AWG – 6 x 2.5 mm²
  • Speaker cable – 14AWG – 6 x 2.5 mm²

SC060A

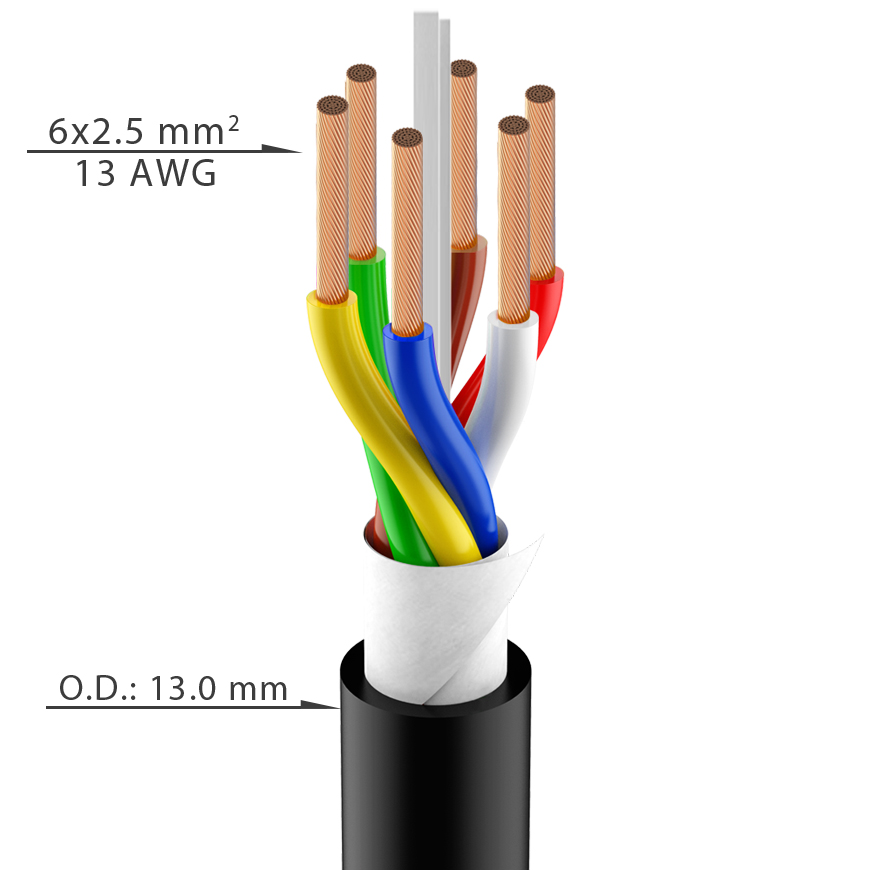

Speaker cable – 14AWG – 6 x 2.5 mm²

• Soft PVC jacket and cores twisted to a StarQuad grant a perfect winding
• Loss-free transmission due to the special stranding
• Easy to work with due to good insulation and numbered wiring


Product Detail

Product Tags

Applications

• Professional PA/sound systems
• Surround and woofer systems
• For fixed installation in building technology

Cable Colour

• Black
• Blue

Technical Data

Order Code SC060A
PVC Jacket, diameter 13 mm
AWG 14
No. of inner conductors 6 x 2.5 mm²
Copper strand per conductor 80 x 0.20 mm
Cond. PVC insulation, diameter 3.1 mm
Temperature range min. -20 °C
Temperature range max. +70 °C
Packaging 100/300 m roll

Electrical Data

Capac. cond./cond. per 1 m 110 pF
Cond. resistance per 1 m 5.3 mΩ
