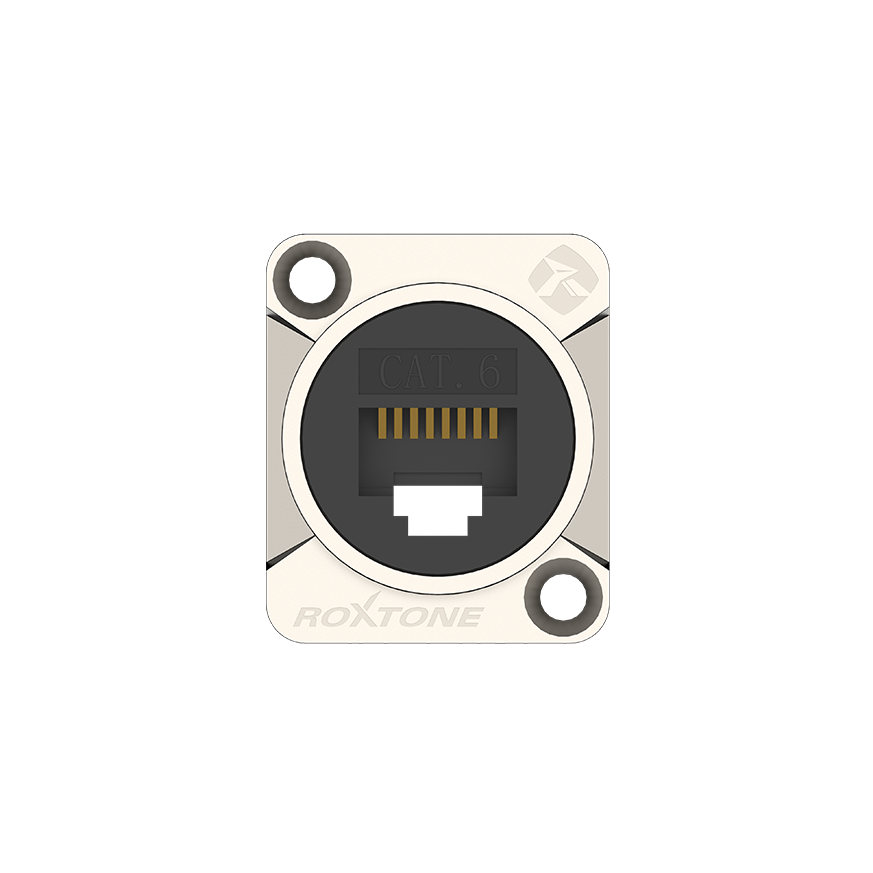

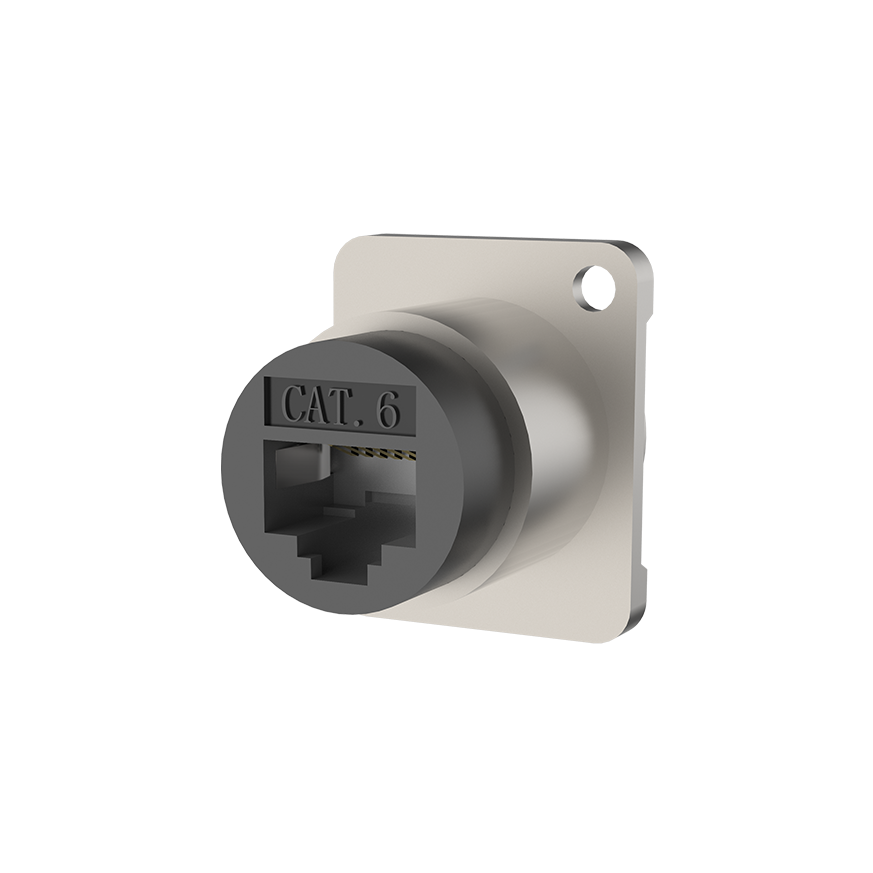

RAE8FD-C6-S
CAT6 feed through, grounded version
Technical Data
| Housing | Zinc alloy diecast |
| Insert | PA6 30% GR |
| Power Supply | 5V / 1.5A |
| Insulation Resistance | >500MΩ |
| Dielectric Strength | 1KV dc |
| Contact-Plating | Gold 6μ |
| Order Code | Description |
| RAE8FD-C6 | Feed through chassis RJ45 (CAT6) adapter, Nickel plated housing |
| RAE8FD-C6-B | Feed through chassis RJ45 (CAT6) adapter Black housing |

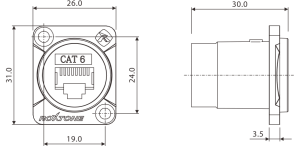

Engineering Drawing
