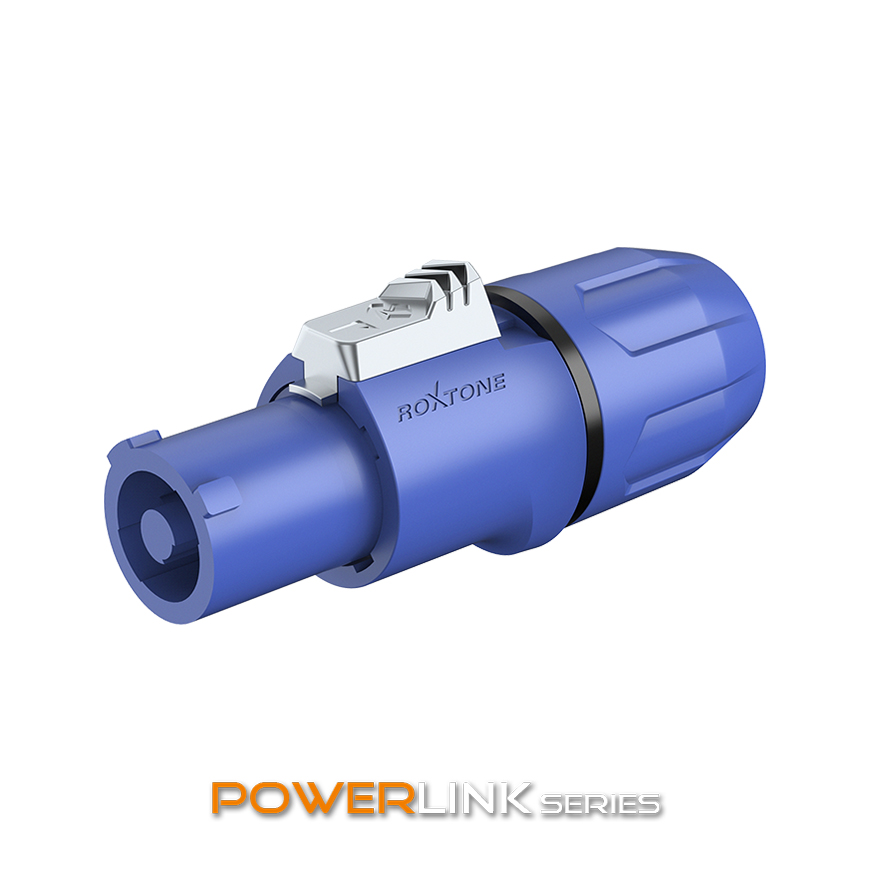

RAC3FCI

Power Link series power in connector

• Lockable 3 pole equipment(AC) connectors

• Silver plated brass and brzone contacts supply excellent contact and conduction properties

• Replaceable color ring on connector indicates cable of different equipment or length easy for works

• Dust resistant bushing for longlife use

• Raw material according with UL-V0 for safe use

• 2 pieces strain-relief be provided for different cable diameter

• Patent protected


Product Detail

Product Tags

20200223195600_9905

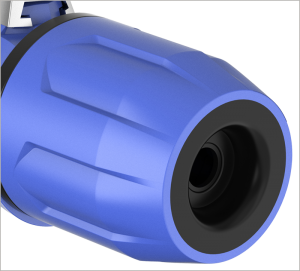

TPE Dust-proof structure

Available Color Rings

20200223194814_7904

Technical Data

Housing PA6 30% GR
Insert PA66 20% GR
Latch Zinc Alloy diecast
Unitary contacts Brass
Contacts plating Silver
Strain relief POM
Color ring PA6 20% GR
Number of contacts 3
Rated current per contact 20 A rms
Rate voltage 250 V ac
Cable O.D. range 6-12 mm
Fammability UL V-0

Engineering Drawing

20191029143348_5203
