TCF series
Multicore audio cable – 24AWG – 8 x 2 x 0.22mm²
Applications
• Reasonable cable for the construction of stage box systems and multi-pair systems
• Dependable cable for permanent installation in installation technologies

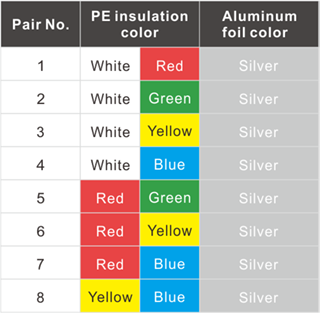

Cable Colour
• Black
Technical Data
| Order Code | TCF4 | TCF8 |
| PVC jacket, diameter | 8.0 mm | 10.2 mm |
| AWG | 24 | 24 |
| No. of inner conductors | 4 x 2 x 0.22 mm² | 8 x 2 x 0.22 mm² |
| Copper strand per conductor | 28 x 0.10 mm | 28 x 0.10 mm |
| Conductor insulation | PE 1.2 mm | PE 1.2 mm |
| Shielding | AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper |
AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper |
| Shielding factor | 100 % | 100 % |
| Temperature range | min. -20 °C | min. -20 °C |
| Temperature range | max. 70 °C | max. 70 °C |
Electrical Data
| Capac. cond./cond. per 1 m | 61 pF | 61 pF |
| Capac. cond./shield. per 1 m | 125 pF | 125 pF |
| Cond. resistance per 1 m | 78 mΩ | 78 mΩ |
| Shield. resistance per 1 m | 105 mΩ | 105 mΩ |
