GC040V

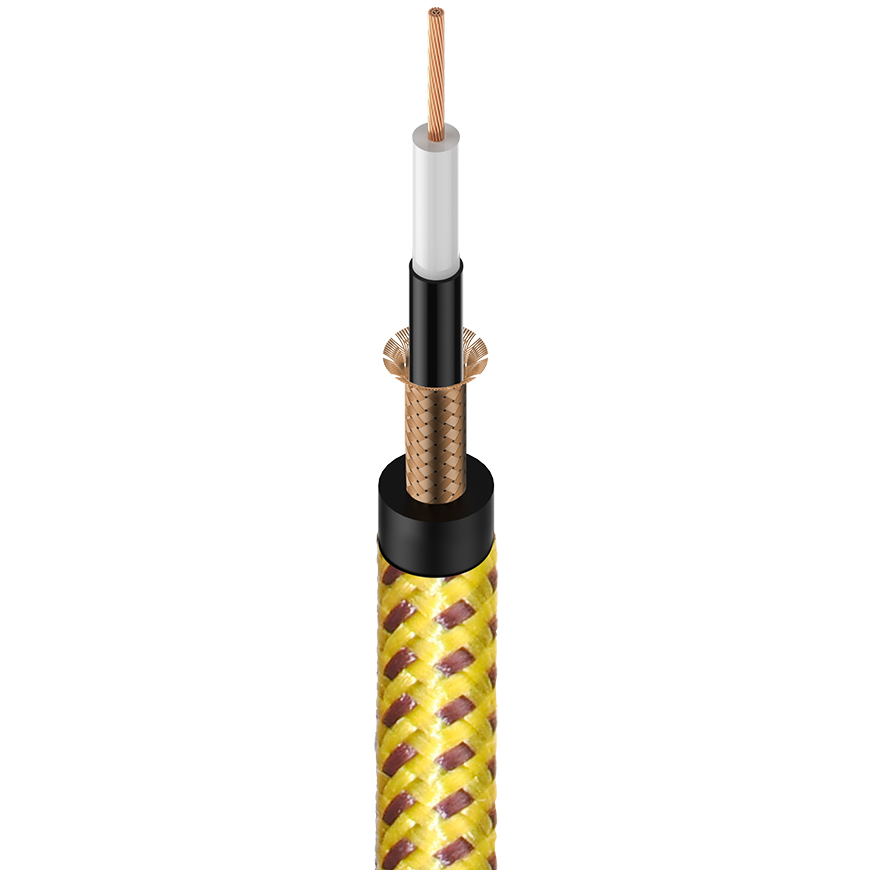

Instrument cable – 24AWG – VINTAGE
Applications
• High quality guitar cable for studio and stage
• Unbalanced cable for keyboards, samplers, mixing boards, etc.
Cable Colour
Vintage
Technical Data
| Order Code | GC040V |

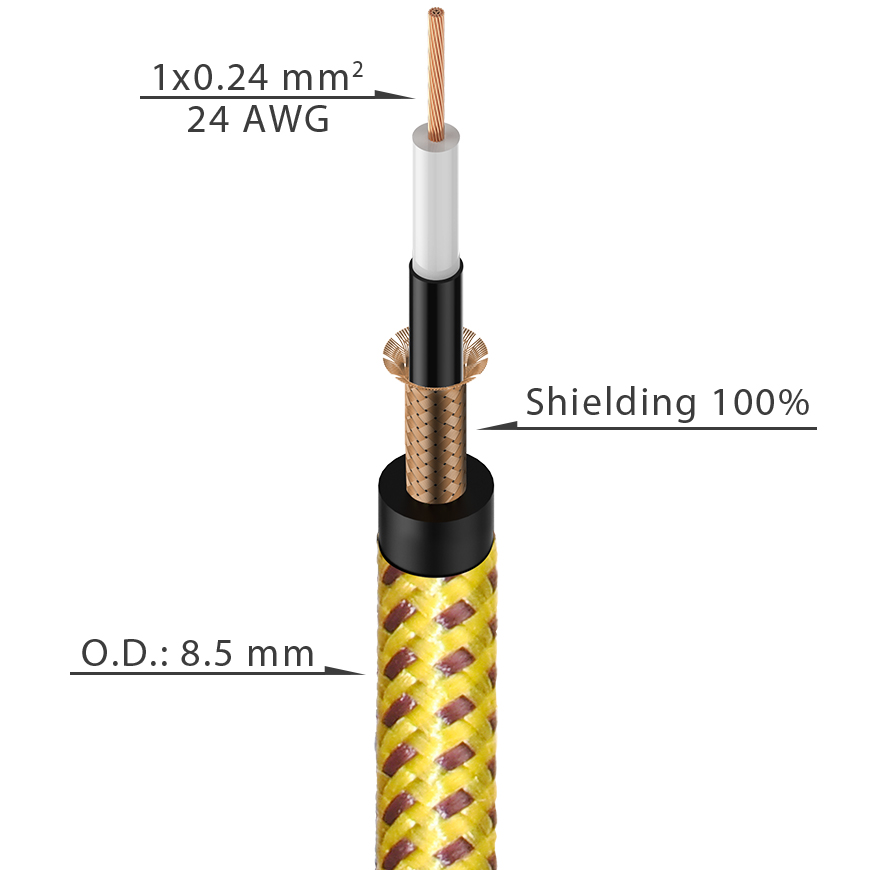

| Jacket, diameter PVC | PVC with fabric 8.6 mm |
| AWG | 24 |
| No. of inner conductors | 1 x 0.24 mm² |
| Copper strand per conductor | 30 x 0.10 mm |
| Conductor insulation | LLDPE 2.4 mm |
| Shielding | copper spiral shielding with 128 x 0.10 mm + semiconductor |
| Shielding factor | 100 % |
| Temperature range | min. -20 °C |
| Temperature range | max. +70 °C |
| Packaging | 100/300 m roll |
Electrical Data
| Capac. cond./shield. per 1 m | 117 pF |
| Cond. resistance per 1 m | 72.5 mΩ |
| Shield. resistance per 1 m | 19.5 mΩ |
