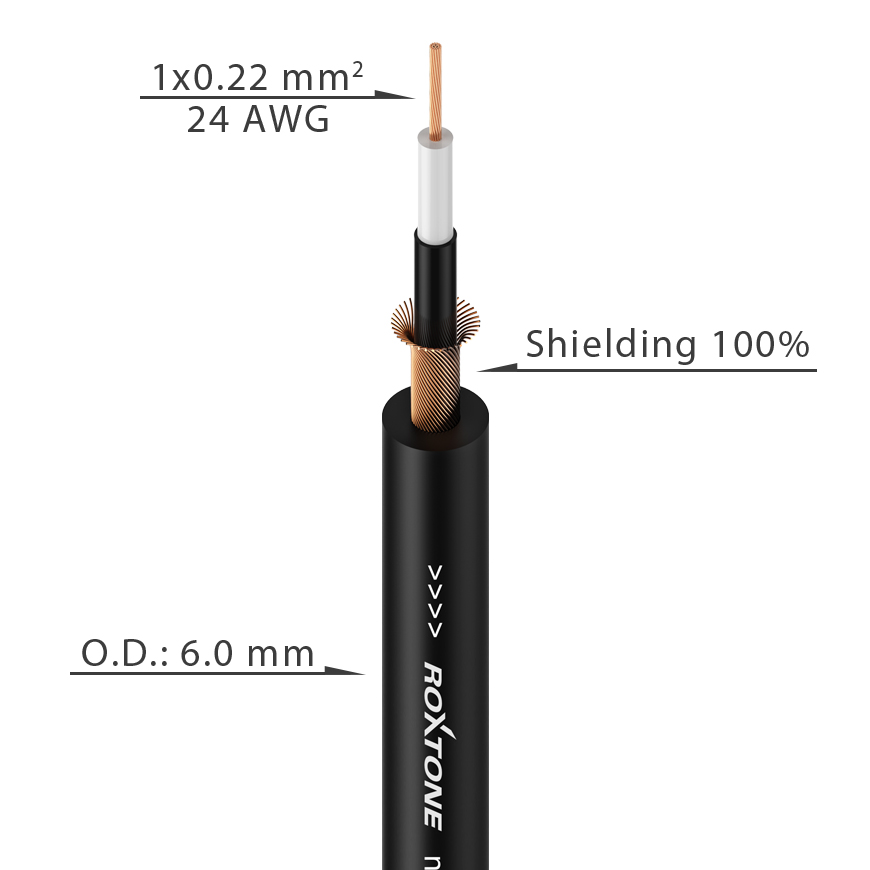

GC010
Instrument cable – 24AWG – HIGH GAIN
Applications
• Stage
• Mobile
• Installations
Cable Colour
• Black
• Red
• Yellow
• Blue
• Green
Technical Data
| Order Code | GC010 |
| Jacket, diameter | PVC 6.0 mm |
| AWG | 24 |
| No. of inner conductors | 1 x 0.22 mm² |
| Copper strand per conductor | 28 x 0.10 mm |
| Conductor insulation | PE 1.95 mm |
| Shielding | copper spiral shielding with 48 x 0.10 mm + semiconductor |
| Shielding factor | 100 % |
| Temperature range | min. -20 °C |
| Temperature range | max. +70 °C |
| Packaging | 100/300 m roll |
Electrical Data
| Capac. cond./shield. per 1 m | 103 pF |
| Cond. resistance per 1 m | 76 mΩ |
| Shield. resistance per 1 m | 52.5 mΩ |
