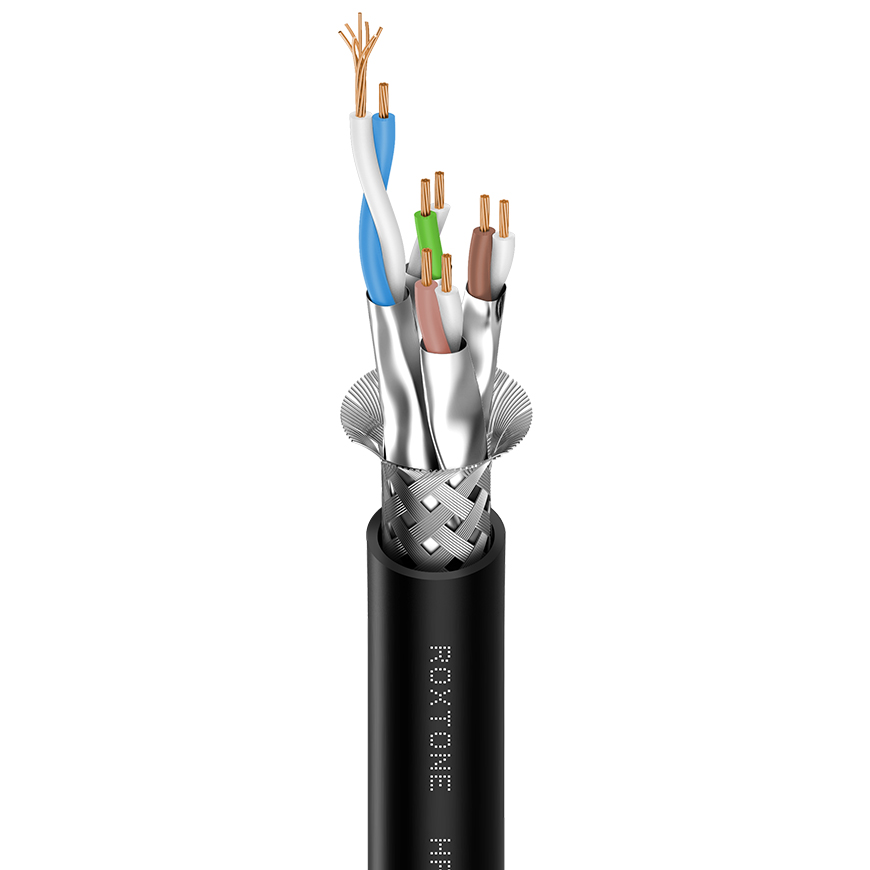

HFC6AP/HFC6AP75
Flexible CAT6a data cable S/FTP
Applications
• Excellent for mobile use and cable drum storage
• Use for digital audio and video signals up to 60m
Cable Colour
• Black
Technical Data
| Order Code | HFC6AP | HFC6AP75 |
| Jacket, diameter | PVC 6.5 mm | PVC 7.5 mm |
| AWG | 26 | 26 |
| No. of inner conductors | 4 x 2 x 0.14 mm² | 4 x 2 x 0.14 mm² |
| Copper strand per conductor | 7 x 0.16 mm | 7 x 0.16 mm |
| Conductor insulation | Foamed-skin PE 1.04 mm | Foamed-skin PE 1.04 mm |
| Shielding | Braided shielding | Braided shielding |
| Shielding factor | 100% | 100% |
| Temperature range | min. -20 °C | min. -20 °C |
| Temperature range | max. +75 °C | max. +75 °C |
| Packaging | 100/300 m roll | 100/300 m roll |
Electrical Data
| Cond. resistance 20°C | ≤145 Ω/ km | ≤145 Ω/ km |
| Pairs/shielding cond.(Unbalance) 1kHz | ≤160 pF/100m | ≤160 pF/100m |
| Insulation resist.per 1Km 20°C | ≥5000 MΩ.km | ≥5000 MΩ.km |
| Surge impedance | 1~100 MHz: 100±15 Ohm | 1~100 MHz: 100±15 Ohm |
| Delay skew | ≤45 ns/100 m | ≤45 ns/100 m |
