Flat audio cable – 24AWG – 2 x 2 x 0.22 mm² Featured Image
  • Flat audio cable – 24AWG – 2 x 2 x 0.22 mm²
  • Flat audio cable – 24AWG – 2 x 2 x 0.22 mm²

AC040

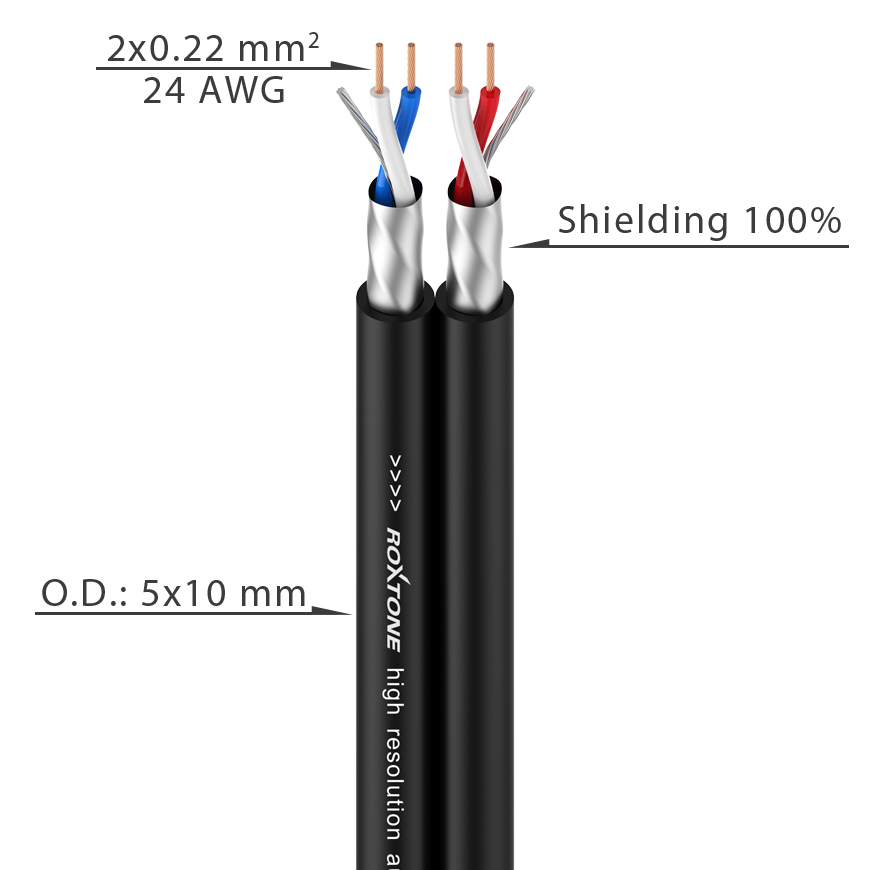

Flat audio cable – 24AWG – 2 x 2 x 0.22 mm²

• The use of OFC stands and a large conductor cross-section of 2 x 0.22mm² ensure high quality signal transmission
• Excellent shielding 100% provided by AL fleece and drain wire
• Small jacket diameter, ensuring easy handling with XLR, JACK and RCA connectors


Product Detail

Product Tags

Applications

• Cabling for balanced units
• Connection of HiFi units
• Construction of Y-adapter cables
• Manufacture of insert cables

Cable Colour

• Black

Technical Data

Order Code AC040
PVC Jacket, diameter 5 x 10 mm
AWG 24
No. of inner conductors 2 x 2 x 0.22 mm²
Copper strand per conductor 28 x 0.10 mm
Conductor insulation PE 1.40 mm
Shielding AL fleece
Shielding factor 100 %
Temperature range min.-20 °C
Temperature range max.+70 °C
Packaging 100/300 m roll

Electrical Data

Capac. cond./cond. per 1 m 61 pF
Capac. cond./shielding per 1 m 127 pF
Cond. resistance per 1 m 82 mΩ
Shielding resistance per 1 m 73 mΩ
