MC214F

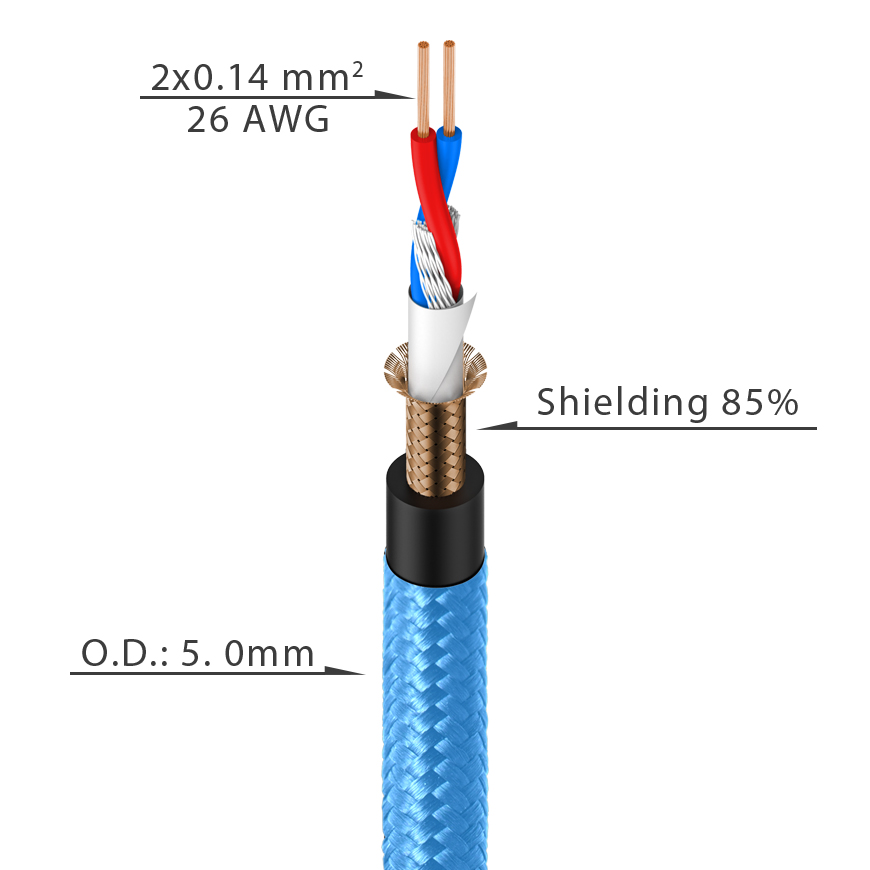

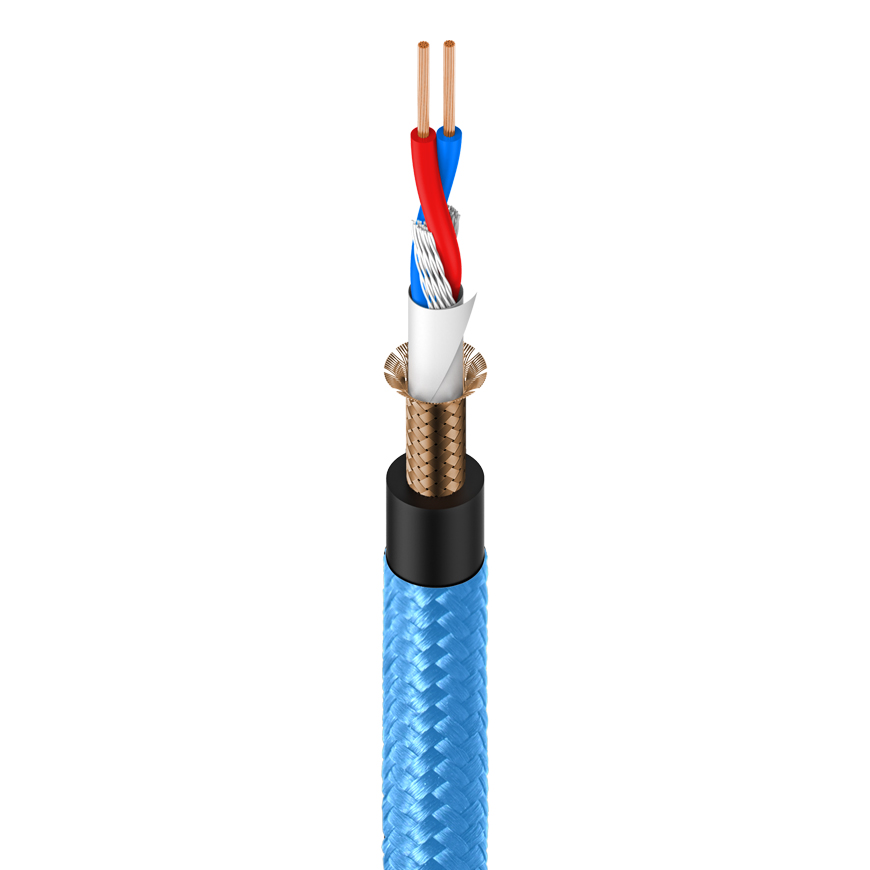

Balanced patch cable for installation – 26AWG – 2 x 0.14mm²

• Ideal for patch cables owing to its small outside diameter
• Thin jacket, suitable for the internal wiring, save more space
• High quality and flexibility, well-suited for use with mini XLR
• Use special LLDPE for the insulation, ensure a good electrical performance and tensile strength


Product Detail

Product Tags

Applications

• Professional studio patch connection
• Interior rack wiring and connection of audio components and effects devices
• Long-distance MIDI cabling
• High-quality mini XLR microphone cable

Cable Colour

• Black(Robust textile jacket)

1

• Blue(Robust textile jacket)

2

Technical Data

Order Code MC214F
Jacket, diameter PVC with fabric 5.0mm
AWG 26
No. of inner conductors 2 x 0.14 mm²
Copper strand per conductor 18 x 0.10 mm
Conductor insulation LLDPE
Shielding Braided shielding
with 96 x 0.10mm
Shielding factor 85 %
Temperature range min. -20 °C
Temperature range max. +70 °C
Packaging 100/200 m roll

Electrical Data

Capac. cond./cond. per 1 m 52 pF
Capac. cond./shield. per 1 m 106 pF
Cond. resistance per 1 m 119.7 mΩ
Shield. resistance per 1 m 23.35 mΩ
