"STBN" Series

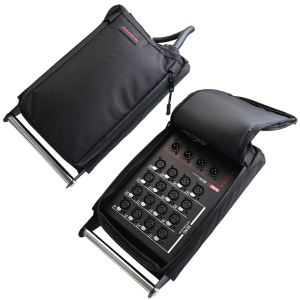

Audio stage box,assembled with TCC series multicore audio cables

• Professional audio stage box,assembled with TCC series multicore audio cables(0,14mm²,100% shielding), flying cable covered with black(Inputs) and red(Outputs) PVC sleeving
• Matt black powder coated steel box with Chrome coated handle

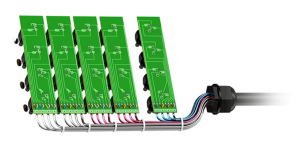

• Use PCB Module, ROXTONE XLR connectors and NEUTRIK sockets, all the numbers are moulded on the XLR code ring never removed after long time using
• Professional soldering and assembling technology, ensure the high quality signal transmission
• Custom made is available

Send email to us

Product Detail

Product Tags

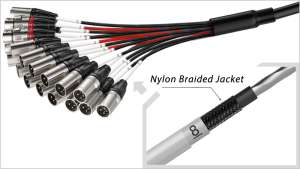

Much more flexible,anti-bending; protect the cable & increase the tensile Strength;

number indicated on white tubeis obvious visible and also not easily to be scratched.

Connector: Roxtone RX3F-NT & RX3M-NT

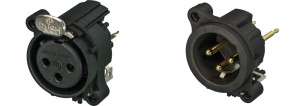

Socket: NEUTRIK® NC3FAAV1 & NC3MAV

Cable: TCC Series
No. of inner cond.: n* x 2 x 0.14mm² * .... Number of channel
Shielding factor: 100%

Order Code

Channel

Inputs

Outputs

Length

STBN0800L15	8	8	-	15mt
STBN0804L10	12	8	4	10mt
STBN0804L15	12	8	4	15mt
STBN0804L25	12	8	4	25mt
STBN1204L20	16	12	4	20mt
STBN1204L30	16	12	4	30mt
STBN1204L50	16	12	4	50mt
STBN1604L20	20	16	4	20mt
STBN1604L30	20	16	4	30mt
STBN1604L50	20	16	4	50mt
STBN1608L30	24	16	8	30mt
STBN1608L50	24	16	8	50mt
STBN2408L20	32	24	8	20mt
STBN2408L30	32	24	8	30mt
STBN2408L50	32	24	8	50mt
