Speaker Connectors
Roxtone Speaker-Twist Connector Female 4P
SPEAKER CONNECTOR FEMALE 4P
Features
• Lockable 4 pin speaker connector
• Brass contacts supply excellent contact and ensure the conductivity
• Heavy duty zinc alloy insert for longlife use(RS4FP-HD)
• Replaceable color ring on connector indicates cable of different equipment or length, easy for operation
• Dust-proof design of the bushing makes the additional protection
• Patent protected
Available Color Rings
Yellow-YL
Blue-BU
Green-GN
Red-RD
Purple-PL
Brown-BN
Grey-GY
Black-BK
Orange-OG
Engineering Drawing
Technical Data
| Title | ||
| Housing | PA6 30% GR | |
| Insert | PA66 20% GR | |
| Latch | Zinc Alloy diecast | |
| Contacts | Brass | |
| Contacts plating | Nickel | |
| Strain relief | POM | |
| Color ring | PA6 20% GR | |
| Number of contacts | 4 | |
| Rated current per contact | 30 A rms | |
| Cable O.D. range | 6-12 mm | |
| Order Code | Description | |
| RS4FP | 4 pole Speaker female connector | |
| RS4FP-HD | 4 pole Speaker female connector |
SPEAKER CONNECTOR – WATERPROOF IP66
Features
• Lockable 4 pin speaker connector, dust and water resistant according to IP66 in mated condition
• Brass contacts supply excellent contact and ensure the conductivity
• Replaceable color ring on connector indicates cable of different equipment or length, easy for cooperation
• Patent protected
Available Color Rings
Yellow-YL
Blue-BU
Green-GN
Red-RD
Purple-PL
Brown-BN
Grey-GY
Black-BK
Orange-OG
Engineering Drawing
Technical Data
| Title | ||
| Housing | PA6 30% GR | |
| Insert | PA66 20% GR | |
| Latch | Zinc Alloy diecast | |
| Contacts | Brass | |
| Contacts plating | Nickel | |
| Strain relief | POM | |
| Color ring | PA6 20% GR | |
| Rated current per contact | 30 A rms | |
| Cable O.D. range | 8-10 mm | |
| Order Code | Description | |
| RS4FP-WF | 4 pole Speaker female connector |
SPEAKER CHASSIS CONNECTOR MALE 4P – WATERPROOF IP66
Features
• Heavy-duty speaker chassis, dust and water resistant according to IP66 in mated condition
• Bronze contacts, more tight for connection
• 30A rms for the operation of high power speakers and amplifiers
• Accurate twist lock latching system
• Front and rear mountable
Accessories
Order code: DCPS
Silicone dust cover
Engineering Drawing
Technical Data
| Title | ||
| Housing | PA6 30% GR | |
| Contacts | Bronze | |
| Contacts plating | Tin | |
| Order Code | Description | |
| RS4MD-WP | 4 pole Speaker male socket, Tin plated contacts | |
SPEAKER CONNECTOR FEMALE 4P
Features
• Lockable 4 pin speaker connector, dust and water resistant according to IP66 in mated condition
• Brass contacts supply excellent contact and ensure the conductivity
• Replaceable color ring on connector indicates cable of different equipment or length, easy for cooperation
• Patent protected
RSA
Engineering Drawing
Technical Data
| Title | ||
| Housing | PA6 30% GR | |
| Insert | PA66 20% GR | |
| Latch | Zinc Alloy diecast | |
| Contacts | Brass | |
| Contacts plating | Nickel | |
| Strain relief | POM | |
| Bushing | PA6 30% GR | |
| Order Code | Description | |
| RS4F-N-BU | 4 pole Speaker female connector, Nickel plated contacts, Blue color ring | |
| RS4F-N-GN | 4 pole Speaker female connector, Nickel plated contacts, Green color ring | |
| RS4F-N-RD | 4 pole Speaker female connector, Nickel plated contacts, Red color ring | |
SPEAKER CONNECTOR FEMALE 4P
Features
• Designed for big diameter cable from 8mm to 12mm
• Improved design for latch lock
• ROXTONE brand engraved on the housing
• Patent Protected
Engineering Drawing
Technical Data
| Title | ||
| Housing | PA6 30% GR | |
| Insert | PA66 20% GR | |
| Latch | Zinc Alloy diecast | |
| Contacts | Brass | |
| Contacts plating | Nickel | |
| Bushing | PA6 30% GR | |
| Order Code | Description | |
| RS4FX-N | 4 pole Speaker female connector, Nickel plated contacts | |
SPEAKER CHASSIS CONNECTOR MALE 4P
Features
• Improved contacts design with Bronze material, more tight for connection
• 30A rms for the operation of high power speakers and amplifiers
• Accurate twist lock latching system
• Front and rear mountable
• ROXTONE brand engraved on the housing
Engineering Drawing
Technical Data
| Title | ||
| Housing | PA6 30% GR | |
| Contacts | Bronze | |
| Contacts plating | Tin | |
| Order Code | Description | |
| RS4MD-T | 4 pole Speaker male socket, Tin plated contacts | |
FAQ
1. What are the differences between these female speaker connectors?
RS4F and RS4F-X have only three parts and are easy for assembly. Moreover, RS4F-X has an anti-bending spiral structure which can protect cable well.
RS4FP is designed with TPE dust-proof structure and has a heavy duty version RS4FP-HD that the insert is zinc alloy.
RS4FP-WP is dust and water resistant according to IP66 in mated condition.
2. Do they have color rings?
RS4F has 3 color rings (blue, green and red) for choice.
RS4FP, RS4FP-HD and RS4FP-WP has 9 available color rings for choice, which are easy to distinguish and match.
3. What is the suitable cable diameter range for these female speaker connectors?
RS4FP and RS4FP-HD is suitable for cable diameter from 6mm to 12mm.
RS4FP-WP is suitable for cable diameter from 8mm to 10mm.
RS4F is suitable for cable diameter from 8mm to 12mm, with an additional accessory RSA from 5mm to 7mm.
RS4FX-N is for big diameter from 8mm to 12mm.
4. What is the material for contacts of female speaker connectors?
The contacts are all brass and contacts plating is nickel.
5. Which type is the cable connecting?
Our female speaker connectors are all solderless and screwed with cable.
6. What are the differences between male speaker chassis connectors?
RS4MD-T is standard version of male speaker chassis connectors while RS4MD-WP is heavy-duty speaker chassis, dust and water resistant according to IP66 in mated condition.
7. What is the material for contacts of male speaker chassis connectors?
The contacts are all bronze and the contacts plating is tin.
8. Which type is supported for front and rear mounting?
RS4MD-T and RS4MD-WP are all front and rear mountable.
9. What is the MOQ requirement for the speaker connectors?
Normally, we require one carton QTY for each item at least.
The MOQ for RS4F / RS4FP / RS4FP-HD / RS4FP-WP is 400pcs each item, RS4FX-N is 200pc, and RS4MD-T / RS4MD-WP is 480pcs.
Products Catgeories
-
Roxtone PCD235/PCD310/PCD380 Empty Unbreakable Cable Drum
-

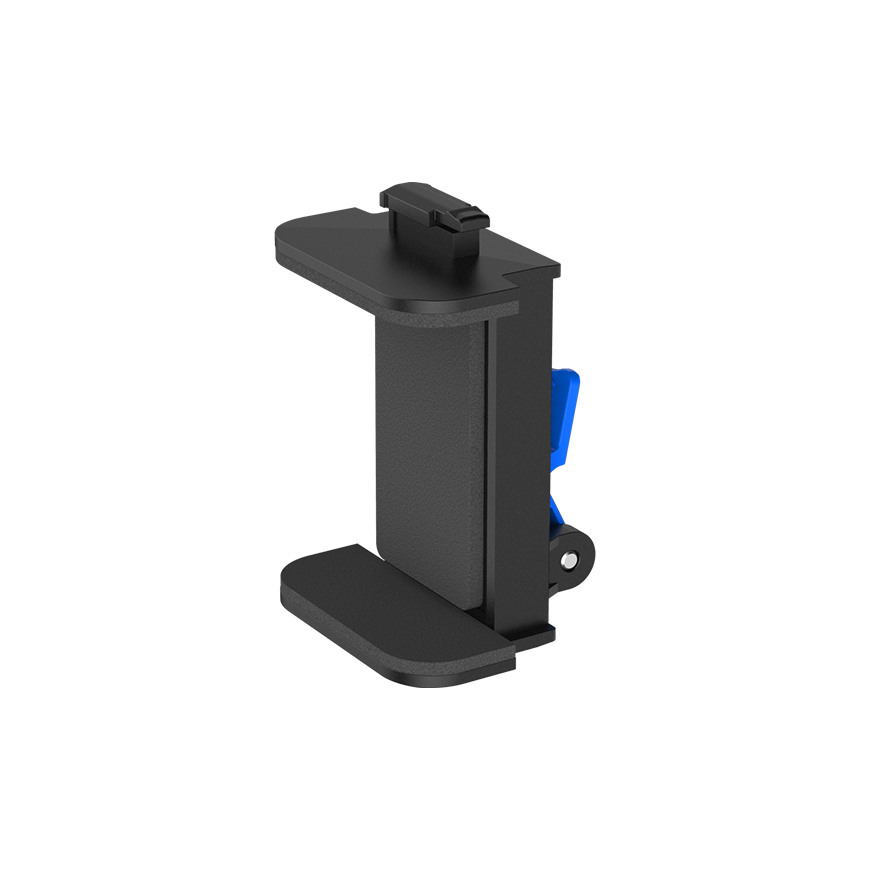

Smartphone Holder
-
Powerlink series, safe lock, universal adaption
-
Excellent quality Multipair Cable 12 Channel Spiral Shielding Multicore Analog Cable
-

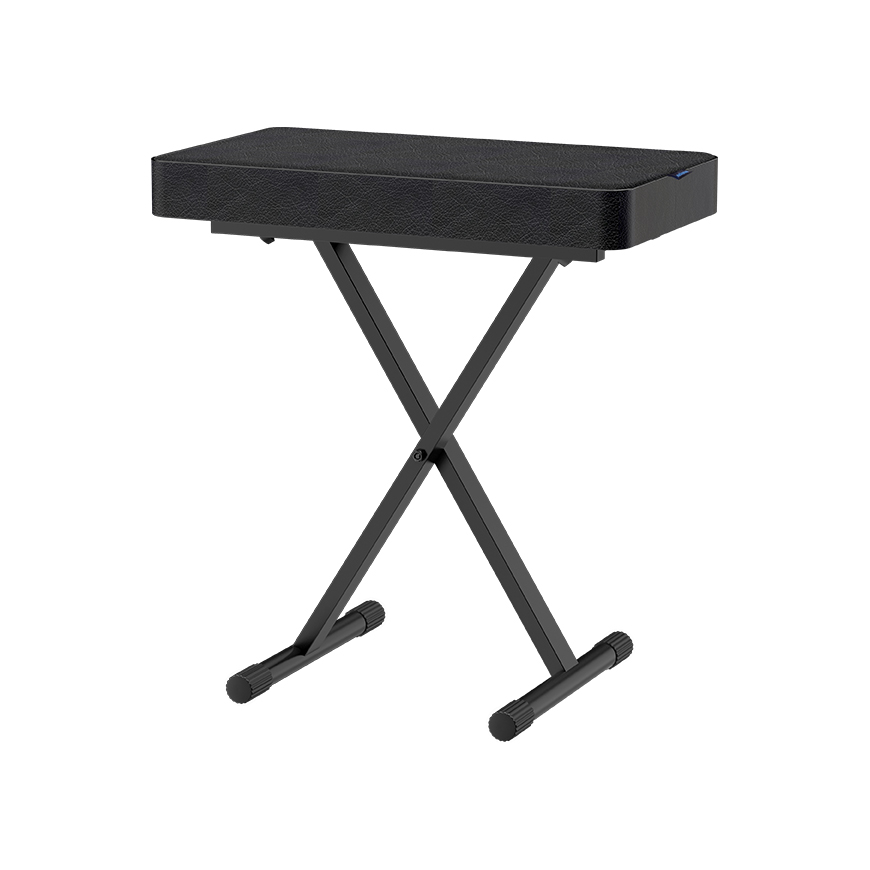

Keyboard Bench, Comfortable Seat, Adjustable Height
-
