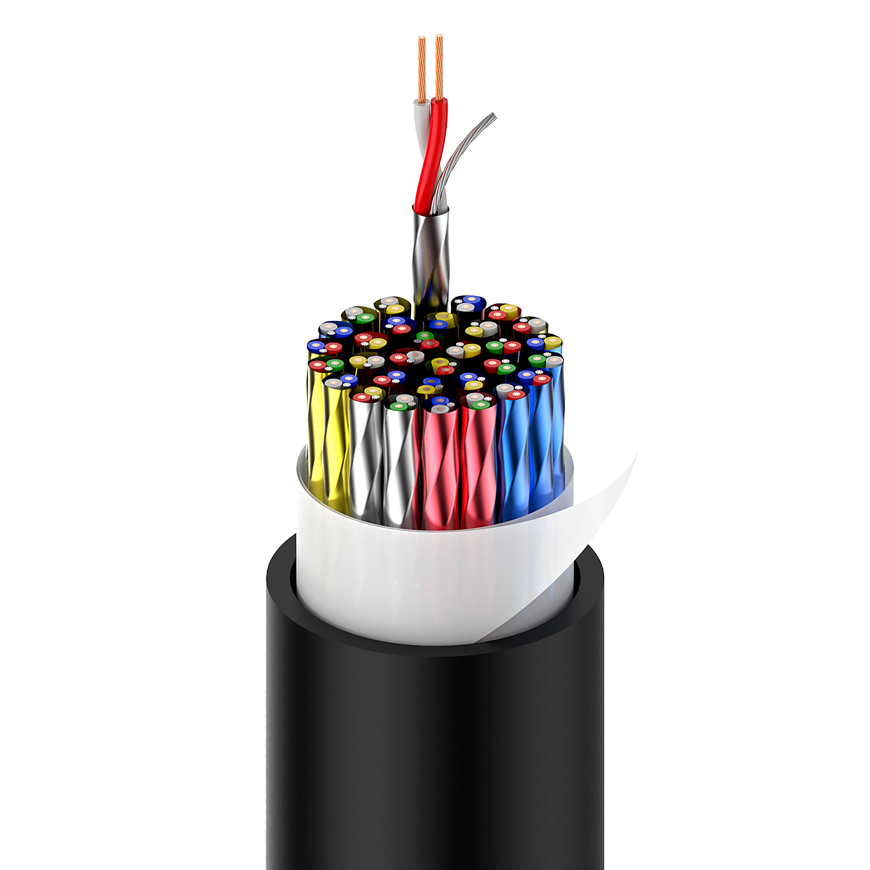

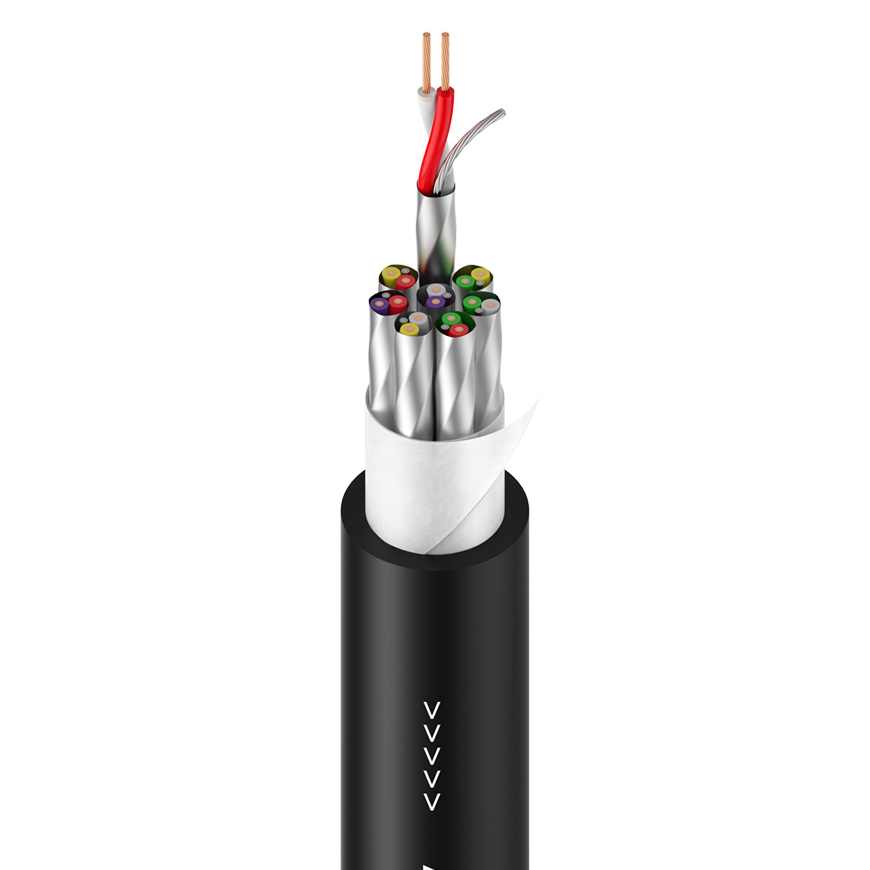

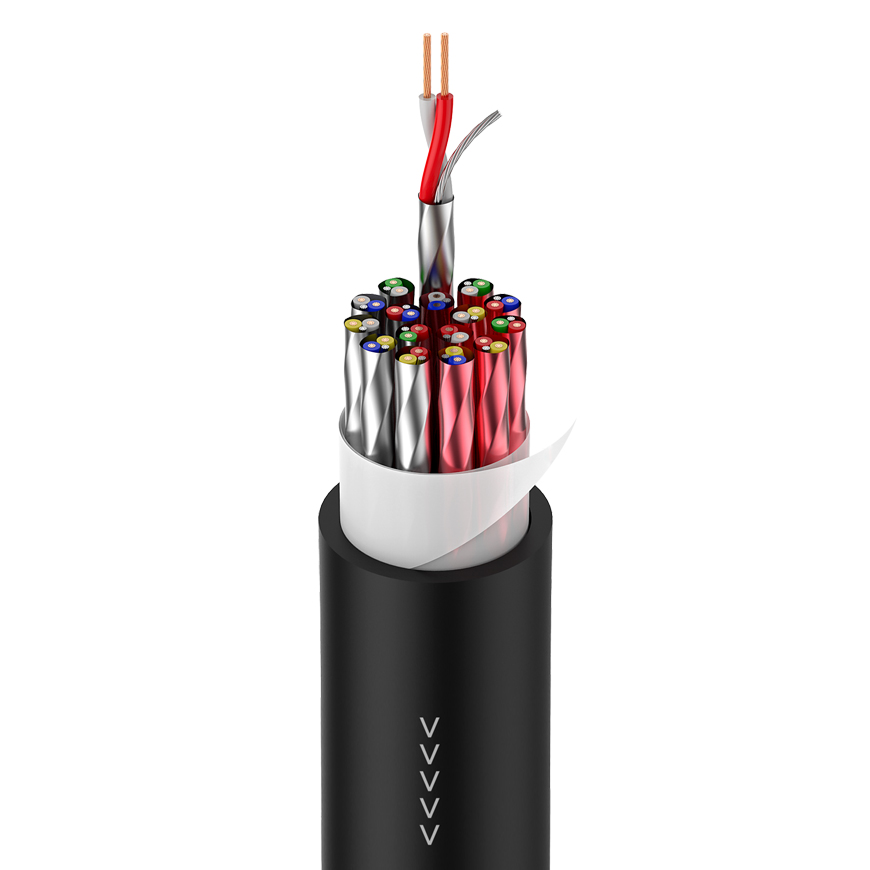

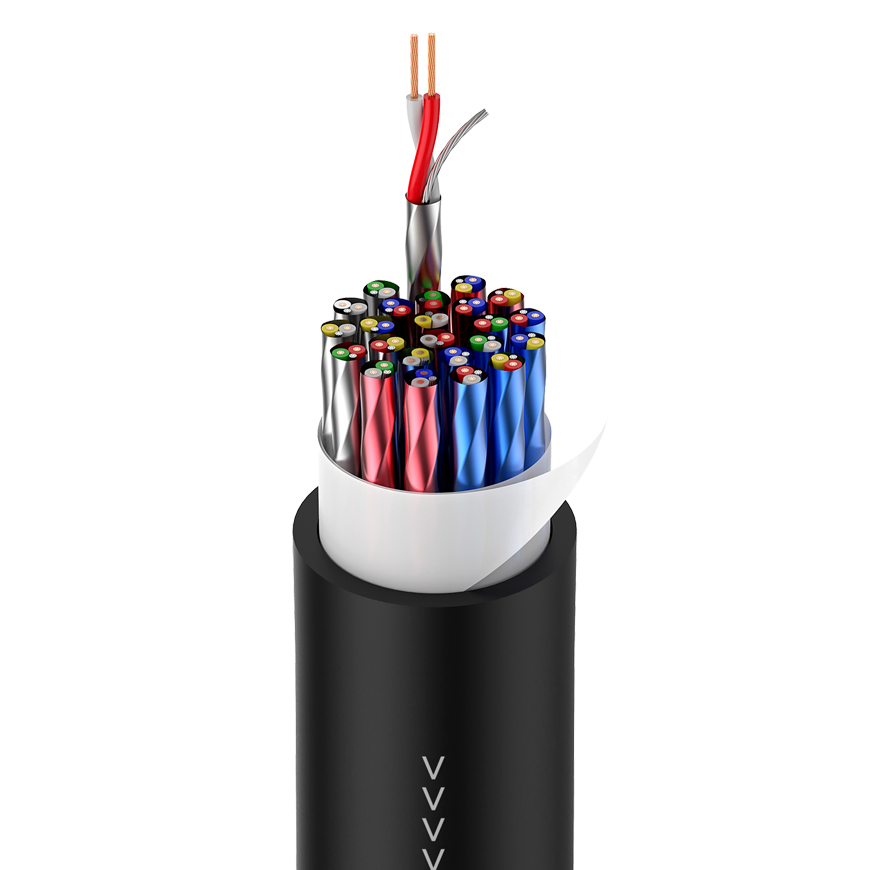

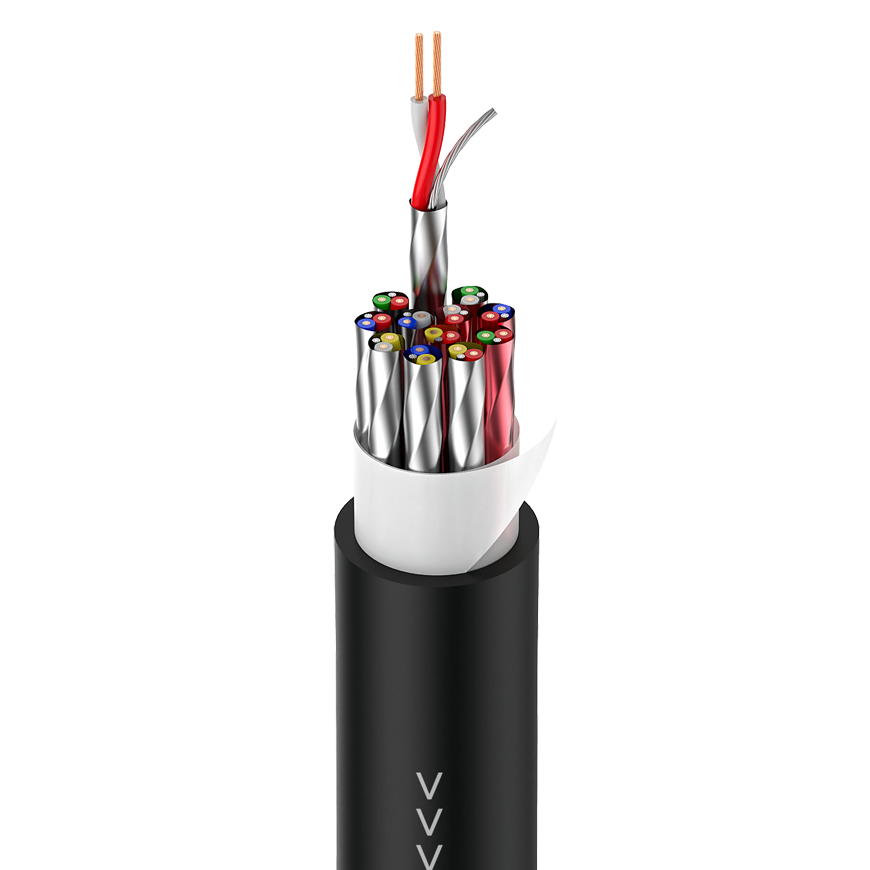

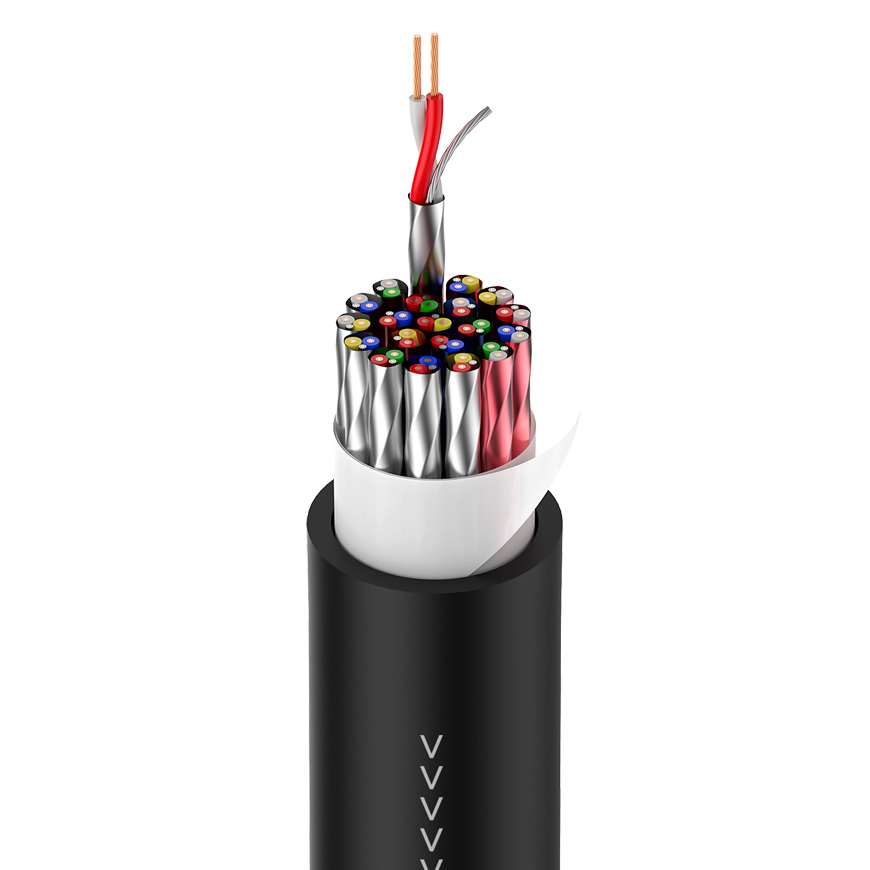

Multicore audio cable – 26AWG – n x 2 x 0.14 mm² Featured Image
  • Multicore audio cable – 26AWG – n x 2 x 0.14 mm²
  • Multicore audio cable – 26AWG – n x 2 x 0.14 mm²
  • Multicore audio cable – 26AWG – n x 2 x 0.14 mm²
  • Multicore audio cable – 26AWG – n x 2 x 0.14 mm²
  • Multicore audio cable – 26AWG – n x 2 x 0.14 mm²
  • Multicore audio cable – 26AWG – n x 2 x 0.14 mm²
  • Multicore audio cable – 26AWG – n x 2 x 0.14 mm²

TCC series

Multicore audio cable – 26AWG – n x 2 x 0.14 mm²

• Compact diameter
• Excellent to work with due to the use of a special AL/PT-foil
• Flexible due to the special wire construction
• Good shielding due to the overall and individual wire pair shielding
• Very good pricing


Product Detail

Product Tags

Applications

• Reasonable cable for the construction of stage box systems and multi-pair systems
• Dependable cable for permanent installation in installation technologies

Cable Colour

• Black

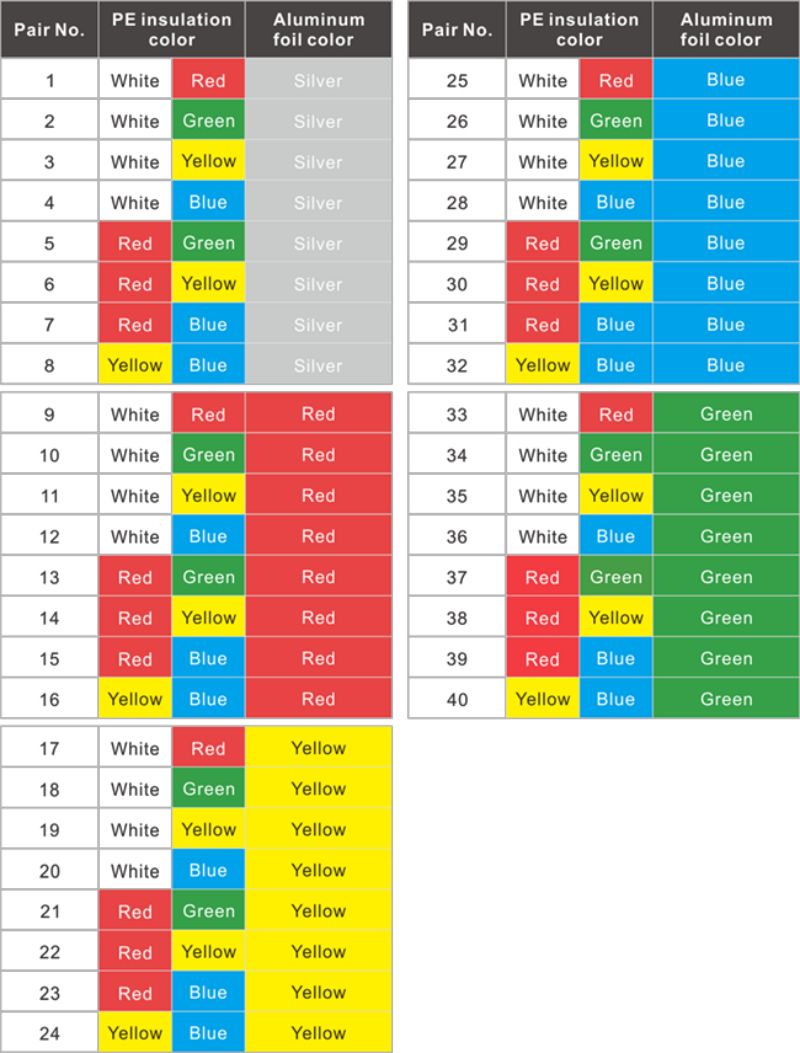

dsv

Technical Data

Order Code TCC8 TCC12 TCC16 TCC20
PVC jacket, diameter 9.5 mm 11.5 mm 13.5 mm 14.5 mm
AWG 26 26 26 26
No. of inner conductors 8 x 2 x 0.14 mm² 12 x 2 x 0.14 mm² 16 x 2 x 0.14 mm² 20 x 2 x 0.14 mm²
Copper strand per conductor 18 x 0.10 mm 18 x 0.10 mm 18 x 0.10 mm 18 x 0.10 mm
Conductor insulation PE 1.05 mm PE 1.05 mm PE 1.05 mm PE 1.05 mm
Shielding AL/PT-foil + drain wire 7 x 0.15 mm  tin plated copper AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
Shielding factor 100 % 100 % 100 % 100 %
Temperature range min. -20 °C min. -20 °C min. -20 °C min. -20 °C
Temperature range max. 70 °C max. 70 °C max. 70 °C max. 70 °C

Electrical Data

Capac. cond./cond. per 1 m 65 pF 65 pF 65 pF 65 pF
Capac. cond./shield. per 1 m 130 pF 130 pF 130 pF 130 pF
Cond. resistance per 1 m 125 mΩ 125 mΩ 125 mΩ 125 mΩ
Shield. resistance per 1 m 110 mΩ 110 mΩ 110 mΩ 110 mΩ

Technical Data

Order Code TCC24 TCC32 TCC40
PVC jacket, diameter 16 mm 18 mm 20 mm
AWG 26 26 26
No. of inner conductors 24 x 2 x 0.14 mm² 32 x 2 x 0.14 mm² 40 x 2 x 0.14 mm²
Copper strand per conductor 18 x 0.10 mm 18 x 0.10 mm 18 x 0.10 mm
Conductor insulation PE 1.05 mm PE 1.05 mm PE 1.05 mm
Shielding AL/PT-foil + drain wire  7 x 0.15 mm   tin plated copper AL/PT-foil + drain wire  7 x 0.15 mm  tin plated copper AL/PT-foil + drain wire  7 x 0.15 mm  tin plated copper
Shielding factor 100 % 100 % 100 %
Temperature range min. -20 °C min. -20 °C min. -20 °C
Temperature range max. 70 °C max. 70 °C max. 70 °C

Electrical Data

Capac. cond./cond. per 1 m 65 pF 65 pF 65 pF
Capac. cond./shield. per 1 m 130 pF 130 pF 130 pF
Cond. resistance per 1 m 125 mΩ 125 mΩ 125 mΩ
Shield. resistance per 1 m 110 mΩ 110 mΩ 110 mΩ
