C6APX/C6AEX

Low delay skew CAT6a data cable, S/FTP

• Low delay skew due to the special structure
• Highly flexible due to special wire stranded technology and PVC jacket
• Great durability, outdoor temperature resistant, easy to reel
• Large wire cross-section AWG23 for long distance use up to 100m
• Foam-skin PE insulation and shielded in pairs with AL-foil

Send email to us

Product Detail

Product Tags

Applications

• Designed for digital mixer and compatible with DMX lighting applications
• Used for all CAT5e,CAT6,CAT6a transmissions

Cable Colour

• Black

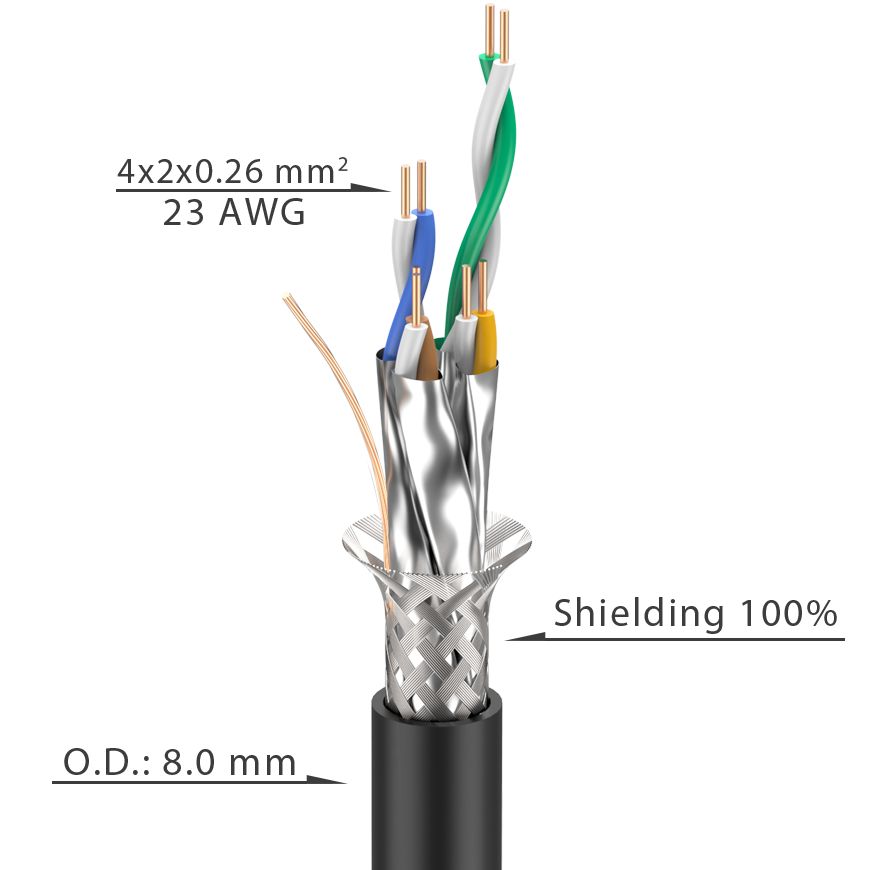

Technical Data

Order Code	C6APX	C6AEX
Jacket, diameter	PVC 8.0 mm	TPE 8.0 mm
AWG	23	23
No. of inner conductors	4 x 2 x 0.26 mm²	4 x 2 x 0.26 mm²
Copper strand per conductor	1 x 0.58 mm	1 x 0.58 mm
Conductor insulation	Foam-skin PE	Foam-skin PE
Shielding	Braided shielding with 128 x 0.12mm + AL/PT-foil + drain wire 7 x 0.16mm	Braided shielding with 128 x 0.12mm + AL/PT-foil + drain wire 7 x 0.16mm
Shielding factor	100%	100%
Temperature range	min. -20 °C	min. -20 °C
Temperature range	max. +60 °C	max. +60 °C
Packaging	100/300 m roll	100/300 m roll

Electrical Data

Capac. cond./cond. per 1 m	36.5 pF	36.5 pF
Capac. cond./shield. per 1 m	79 pF	79 pF
Cond. resistance per 1 m	68.8 mΩ	68.8 mΩ
Shield. resistance per 1 m	12 mΩ	12 mΩ
