AC010

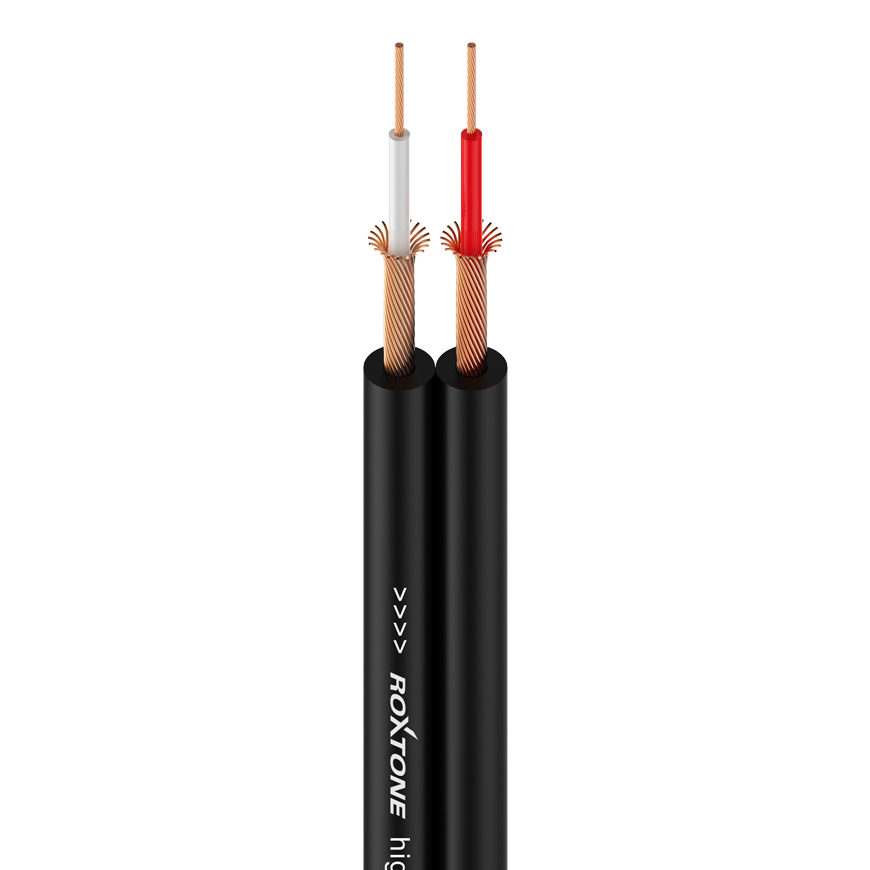

Flat audio cable – 26AWG – 2 x 1 x 0.14 mm²
Applications
• Cabling for unbalanced units (keyboards)
• Connection of HiFi-units
• Construction of Y-adapter cables
• Manufacture of insert cables
Cable Colour
• Black
• Blue
Technical Data
| Order Code | AC010 |
| Jacket, diameter | PVC 4 x 8 mm |
| AWG | 26 |
| No. of inner conductors | 2 x 1 x 0.14 mm² |
| Copper strand per conductor | 18 x 0.10 mm |
| Conductor insulation | PE |
| Shielding | copper spiral shielding |
| Shielding factor | 90 % |
| Temperature range | min. -20 °C |
| Temperature range | max. +70 °C |
| Packaging | 100/300 m roll |
Electrical Data
| Capac. cond./shield. per 1 m | 138 pF |
| Cond. resistance per 1 m | 120 mΩ |
| Insulation resist. per 1 m | 70 mΩ |
