Cold resistant -40°C microphone cable – 22AWG – 2 x 0.30 mm² Featured Image
  • Cold resistant -40°C microphone cable – 22AWG – 2 x 0.30 mm²
  • Cold resistant -40°C microphone cable – 22AWG – 2 x 0.30 mm²

MC010CR

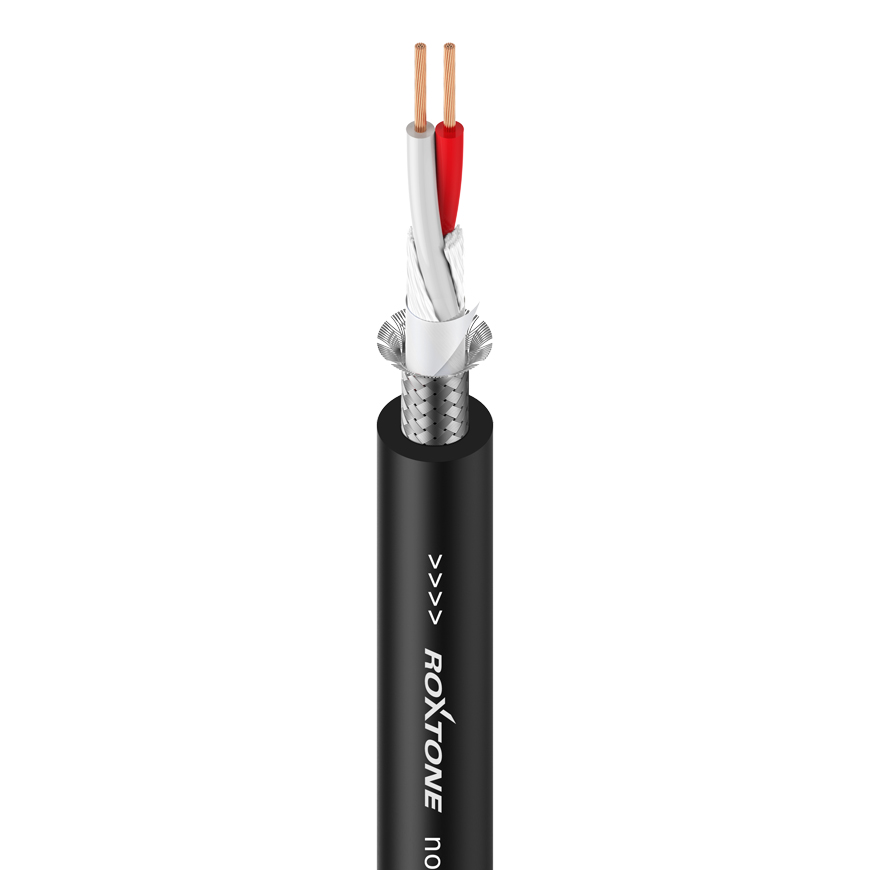

Cold resistant -40°C microphone cable – 22AWG – 2 x 0.30 mm²

• Cold resistant -40°C due to the special PVC jacket
• High transmission quality due to the use of OFC stranding with a large wire diameter of 2 x 0.30 mm²
• Very low capacity due to the PE insulation
• Good protection due to the dense copper braided shielding
• High flexibility makes it easy to wind


Product Detail

Product Tags

Applications

• Stage
• Mobile
• Installations

Cable Colour

• Black
• Blue

Technical Data

Order Code MC010CR
Jacket, diameter Cold resistant PVC 6.5 mm
AWG 22
No. of inner conductors 2 x 0.30 mm²
Copper strand per conductor 38 x 0.10 mm
Conductor insulation PE 1.50 mm
Shielding tin plated copper spiral
shielding with 80 x 0.10 mm
+ AL fleece
Shielding factor 95%
Temperature range min. -40°C
Temperature range max. +70°C
Packaging 100/300 m roll

Electrical Data

Capac. cond./cond. per 1 m 56 pF
Capac. cond./shield. per 1 m 122 pF
Cond. resistance per 1 m 56 mΩ
Shield. resistance per 1 m 23.5 mΩ
